In Brief
Researchers have developed a new device that can generate electricity from figure movement by harnessing triboelectric charging. This tiny tab could one day allow us to charge our devices without having to plug them into an outlet.

Kinetic Energy Goes Electric

We have a lot of devices these days, and they all need to be charged. Though there are now pads for wireless charging, these are still plugged into a power outlet. In many cases, the charging process has barely evolved at all in the past decade or more.

But now, researchers from the University at Buffalo and the Chinese Academy of Science (CAS) might have developed the next step in this evolution, one that would no longer require plugging anything into a power socket. All it takes, according to their research recently published in the journal Nano Energy, is a special metallic tab and a little bit of body movement.

Renewable Energy Sources Of The Future [Infographic]
Click to View Full Infographic

The secret is an effect called triboelectric charging, and it’s something that most people have actually seen — or felt — before. Triboelectric charging happens when a material becomes electrically charged after coming into frictional contact with another material.

Yes, that’s right. Most static electricity happens this way, like when you accidentally touch a person and you get a small jolt from it. And no, we’re not talking about an emotional jolt here, silly.

This kind of contact electrification has been quite difficult to turn into a useful power source, although there have been studies that looked into it. Too often, the materials are difficult to produce or are not cost effective. The metallic tab developed by the researchers supposedly overcomes these hurdles.

Power Through Movement

The tab features two thin layers of gold that sandwich a slab of a silicon-based polymer called polydimethylsiloxane, which is typically used in contact lenses and Silly Putty. One layer of gold is stretched and then released, causing it to crumple. Upon applying force again, movement between the layers of gold and the polymer creates friction.

“This causes electrons to flow back and forth between the gold layers. The more friction, the greater the amount of power is produced,” lead author Yun Xu, a professor of Institute of Semiconductors at CAS, said in a press release. This friction can come from the slightest movement of a finger, the researchers explained.

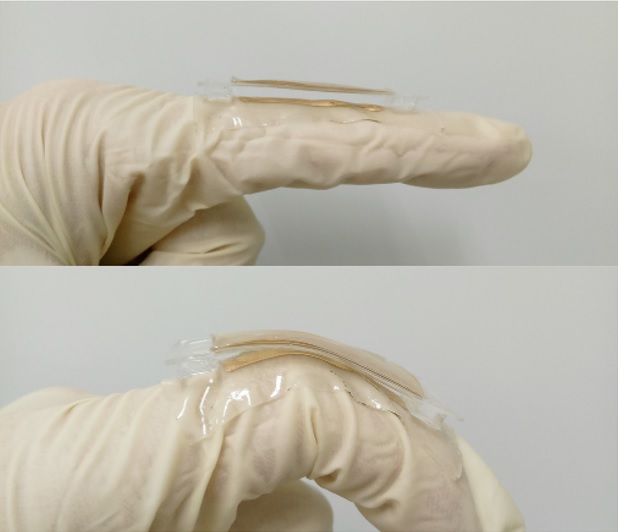

A prototype metallic tab. Image credit: Nano Electricity/University at Buffalo
A prototype metallic tab. Image credit: Nano Electricity/University at Buffalo

As a demonstration in their study, the researchers used a metallic tab that’s only 1.5 cm (0.6 inches) long and 1 cm (0.4 inches) wide. The small tab generated 124 volts, with a maximum current and density that was enough to light 48 red LED lights at the same time. Though the tech is not quite there yet, the researchers hope that their material could soon charge smartphones and other smart gadgets using just movement.

“No one likes being tethered to a power outlet or lugging around a portable charger. The human body is an abundant source of energy. We thought: ‘Why not harness it to produce our own power?'” lead author Qiaoqiang Gan, an associate professor of electrical engineering at University at Buffalo, said in the press release.

Gan and his colleagues plan to improve the performance of this triboelectric charging device while at the same time working on a portable battery that can be used to store the energy the tab generates.
