Scientists have made a brand new superconducting material, and it is not hard like traditional materials, but soft. Moreover, the structure is engineered to self-assemble like microorganisms known as diatoms.

Ulrich Wiesner from Cornell University led a team of researchers to create the first self-assembled three-dimensional gyroidal semiconductor. Nearly two decades of research led to the transformation of the first superconductor made from niobium nitride to a 3D structure.

Their findings were published in the journal Science Advances on Jan. 29.

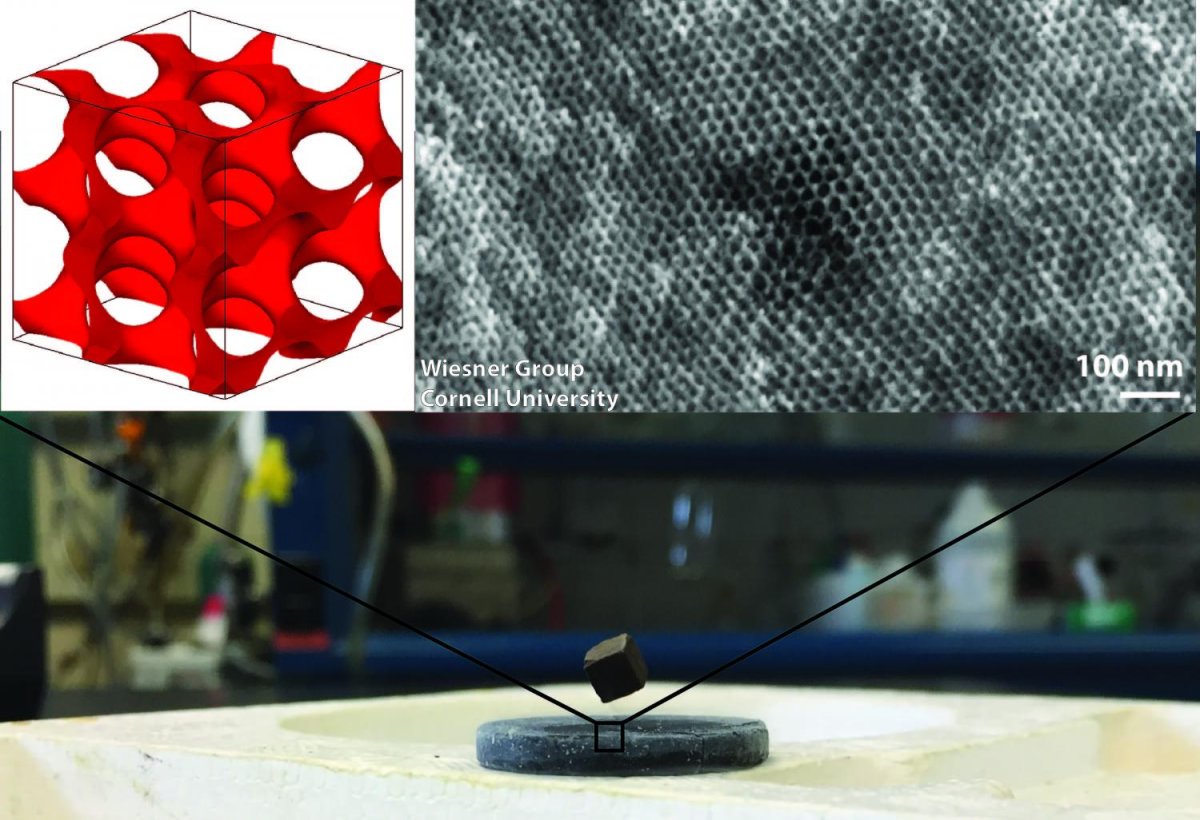

The gyroid is a complex cubic structure based on a surface that divides space into two separate volumes. These volumes are interpenetrating and contain various spirals. Pores in the superconducting material have structural dimensions of only around 10 nanometers, which could lead to entirely novel property profiles of superconductors.

In the end, it could allow us to create a massively scalable superconductor that allows for greater control over how the material moves the magnetic fields of energy that passes through it.

Ulrich Wiesner. Cornell University
How a superconductor is born

As of the moment, superconductivity for practical uses such as in magnetic resonance imaging (MRI) scanners and fusion reactors is only possible at near absolute zero (which is -273.15 degrees Celsius or -459.67 degrees Fahrenheit), although recent experimentation has yielded superconducting at a comparatively balmy -70 degrees C (-94 degrees F).

“There’s this effort in research to get superconducting at higher temperatures, so that you don’t have to cool anymore,” Wiesner said. “That would revolutionize everything. There’s a huge impetus to get that.”

Wiesner, a materials science and engineering professor, and his co-author Sol Gruner had been dreaming for over two decades about making a gyroidal superconductor in order to explore how this would affect the superconducting properties. The difficulty was in figuring out a way to synthesize the material. The breakthrough was the decision to use NbN as the superconductor.

Superconductivity, in which electrons flow without resistance and the resultant energy-sapping heat, is still an expensive proposition. MRIs use superconducting magnets, but the magnets constantly have to be cooled, usually with a combination of liquid helium and nitrogen.

The multidisciplinary team started by using organic block copolymers to structure direct sol-gel niobium oxide (Nb2O5) into three-dimensional alternating gyroid networks by solvent evaporation-induced self-assembly. In easier terms, the group built two intertwined gyroidal network structures, then removed one of them by heating in air at 450 degrees Celsius.

The team’s discovery featured a bit of “serendipity,” Wiesner said. In the first attempt to achieve superconductivity, the niobium oxide (under flowing ammonia for conversion to the nitride) was heated to a temperature of 700 degrees Celsius. After cooling the material to room temperature, it was determined that superconductivity had not been achieved. The same material was then heated to 850 degrees Celsius, cooled and tested, and superconductivity had been achieved.

“We tried going directly to 850, and that didn’t work,” Wiesner said. “So we had to heat it to 700, cool it and then heat it to 850 and then it worked. Only then.”

Wiesner said the group is unable to explain why the heating, cooling and reheating works, but “it’s something we’re continuing to research,” he added.

Limited previous study on mesostructured superconductors was due, in part, to a lack of suitable material for testing. The work by Wiesner’s team is a first step toward more research in this area.

“We are saying to the superconducting community, ‘Hey, look guys, these organic block copolymer materials can help you generate completely new superconducting structures and composite materials, which may have completely novel properties and transition temperatures. This is worth looking into,'” Wiesner said.
